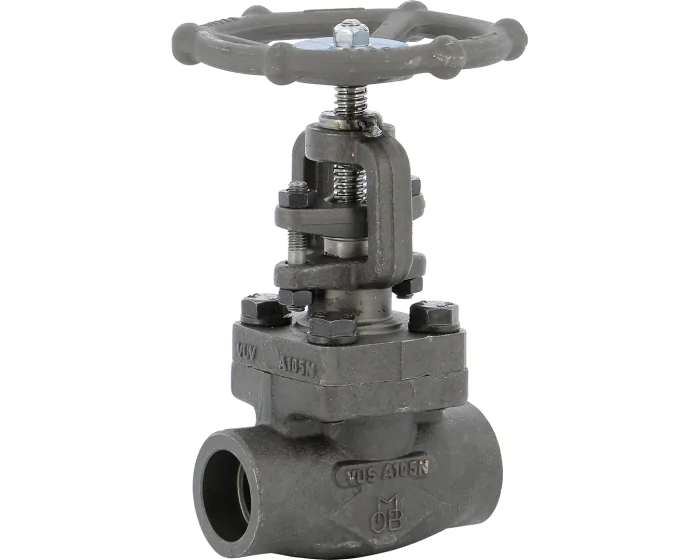

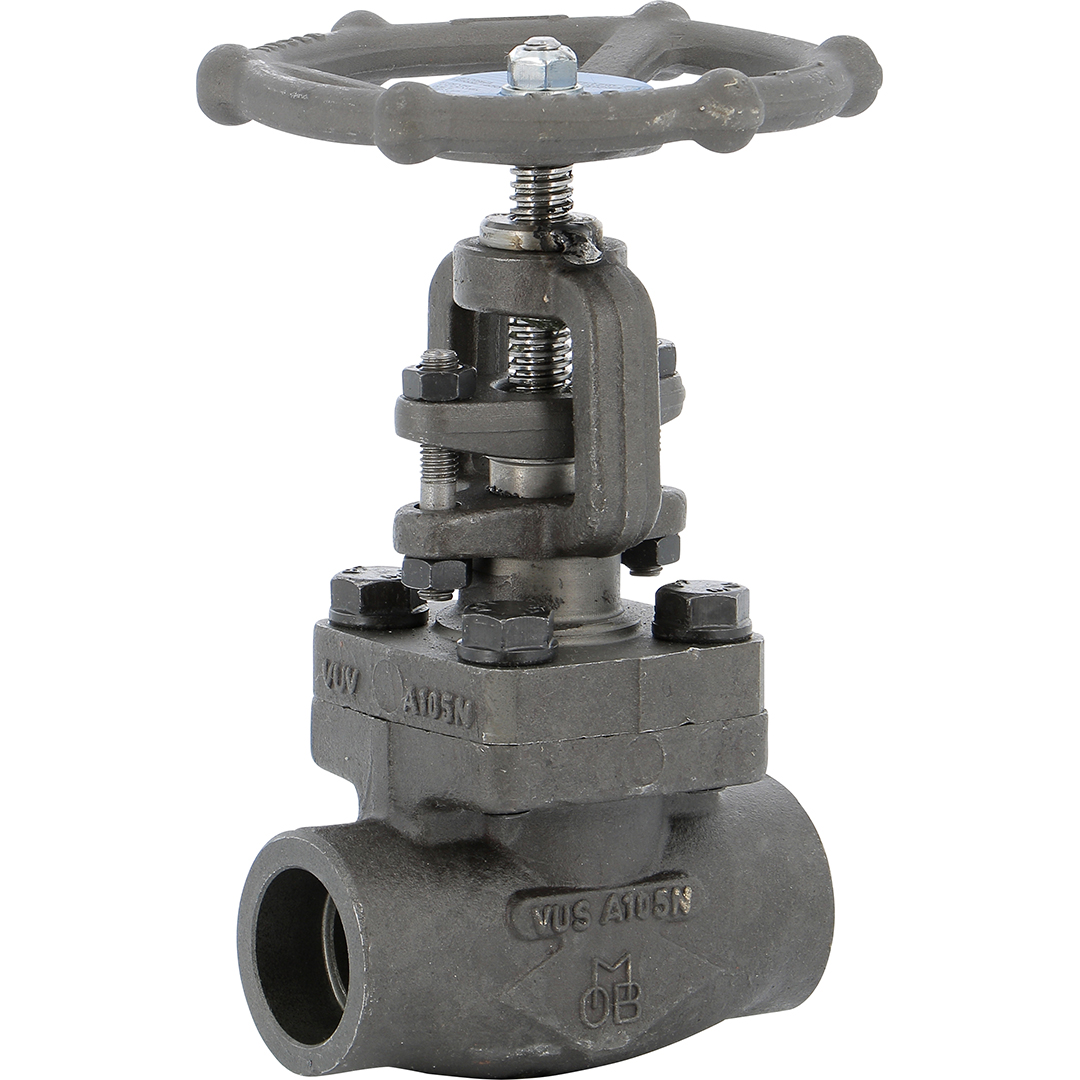

The globe valve series 421, in forged steel A350 LF2, welding SW with bolted bonnet, standard bore, Class 1500, TRIM 12, stainless steel rising stem, plug, for steam, petrochemical, oil and chemical industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A350 LF2 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 12 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 90.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 1.3 |
| Body material | Carbon steel ASTM A350 LF2 |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 255 |
| Connections | Welding SW |
| Seats | Stainless steel ASTM A479 S31600/S31603 stellite |
| TS max (°C) | 425 |
| TS min (°C) | -46 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Plug material | Stainless steel ASTM A182 F316/316L |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A350 LF2 Standard DN15 - 1/2'' | 421015 | S1007499 |
€78.54
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN20 - 3/4'' | 421020SF | S1007500 |
€105.06
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN25 - 1'' | 421025 | S1007501 |
€201.96
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN40 - 1''1/2 | 421040 | S1007502 |
€338.64
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN50 - 2'' | 421050 | S1007503 |
€618.11
(excl. btw)
|
add to cart |
